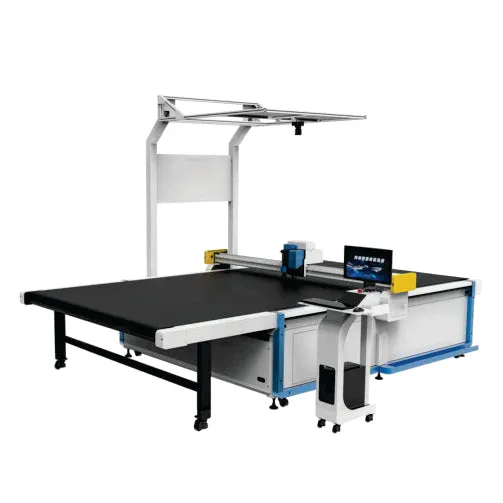

MODELS
|
S7-1625FV |
|
S7-1825FV |
|
S7-2025FV |
TECHNICAL DATA
|
Working Width |
1600/1800/2000mm |
62"/70"/78" |
|
Normal Working Width |
Standard 2500mm |
Standard 98" |
|
Customized Length Range |
800mm 5000mm |
31"~196" |
|
Customized Width Range |
800mm 2600mm |
31" 102" |
|
Cutting speed |
0mm/s ~1500mm/s |
|
|
Max Acc speed X/Y/Z/C Axis |
0.6g/0.6g/1.0g/1.5g |
|
|
Total Configuration |
Tungsten steel straight knife, round knife, and other tools like V notch, I notch etc optional |
|
|
Drive Motor |
Servo motor |
|
|
Vibration cutter |
Vibration Speed 16000/min RPM 80W motor |
|
|
Material Fixed Method |
Vaccum absorb |
|
|
Data Format |
DXF,PLT,HPGL |
|
|
Air Pressure, Flow |
0.55 Mpa 100L/min |
|
|
Vacuum Pump Power |
7.5kw/9kw |
|
|
Working voltage / frequency |
AC380V ± 38V,50Hz 1Hz |
|
|
Work Environment |
Temperature 0 ~ 40, humidity 20% ~ 80% |
|
MAIN FEATURES
· Durability: The machine structure is crafted with tube-plate welding, precision-machined using a high-accuracy gantry milling process. The beam is made from industrial-grade aluminum through one-time extrusion molding for added strength.
· Levelling: The platform is constructed as a single welded unit using an industrial aluminum system for enhanced stability.
· Simplicity: Features a modular cutter tool design that is straightforward and easy to replace.
· Customization: Offers customizable sizes to meet customer requirements, with various tool options available.
· Intelligence: Supports advanced vision systems, including automatic contour cutting, position-based cutting, feature location cutting, strip cutting, and optional projection-based cutting with a projector.
· Ease of Use: Operates on a proprietary system developed by the TIMING team, offering robust functionality, stable performance, an intuitive interface, and a user-friendly menu.
